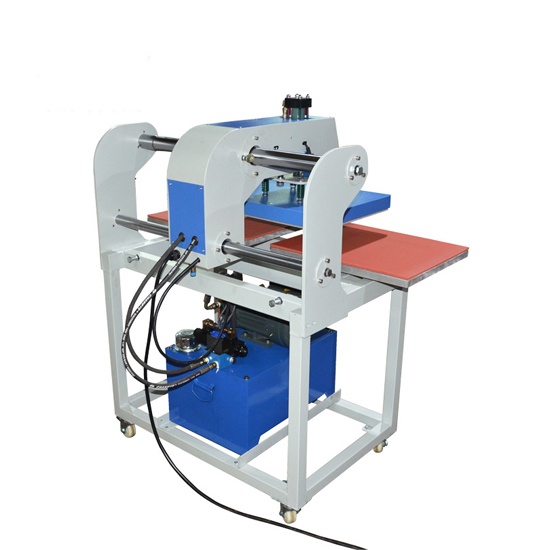

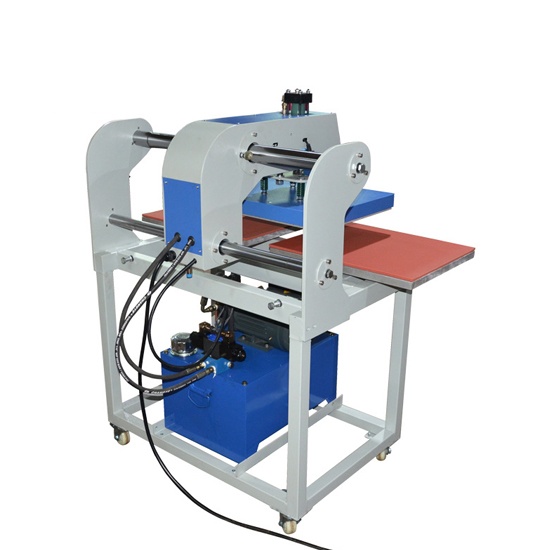

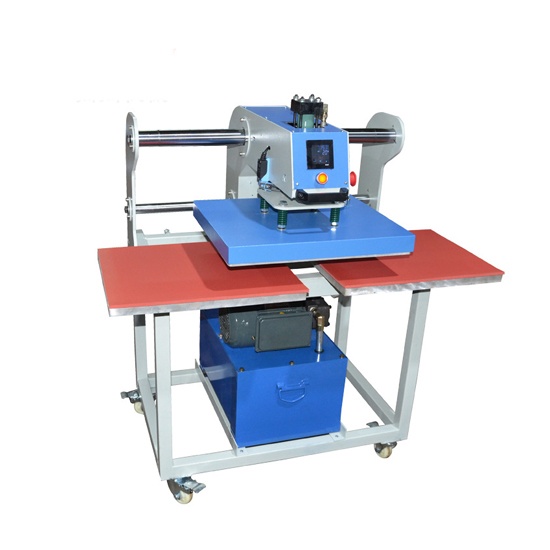

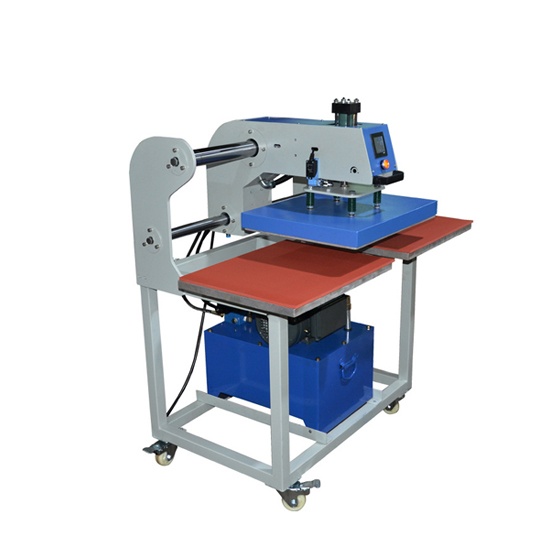

Double Station Hydraulic Heat Press Piston Machine

Double Station Hydraulic Heat Press Piston Machine

1. High and Stable Pressure, and pressure is adjustable for printing different material.

2.With Digital timer and temperature meter, temperature and time can be precise controlled and easy, fast setting. Counter is built-in to count production quantity.

3.Two Axis help movement left and right smoother, two station design can help save space and labor. 8 springs can spray pressure averagely to heating plate. Space between heating plate and bottom plate is up to 10cm, can print different thickness material.

4. Thicker heating element is up to 10cm, temperature is very even and little different of every heating plate corner, no color different output.

5. Handle is easy to hold, make movement very effortless.

6. Heating plate and bottom plate is paralleled, then heating plate will go down and begin to heat transfer, when time is going off, it will automatically open as scheduled.

7. Heavy and durable structure makes machine longer service life.

Parameters:

Model

(cm)

Voltage

V

Power

(KW)

Time(S)

Temp.(℃)

Measurement(cm)

Working Pressure(kg/cm2)

38*38

220 / 380

3

0-999

0-399

118*73*138

0-20

40*50

220 / 380

3.5

0-999

0-399

128*76*138

0-20

40*60

220 / 380

4.5

0-999

0-399

128*91*138

0-20

50*60

220 / 380

5

0-999

0-399

138*91*138

0-20

50*70

220 / 380

5.5

0-999

0-399

148*101*138

0-20

60*80

220 / 380

6

0-999

0-399

198*93*138

0-20
