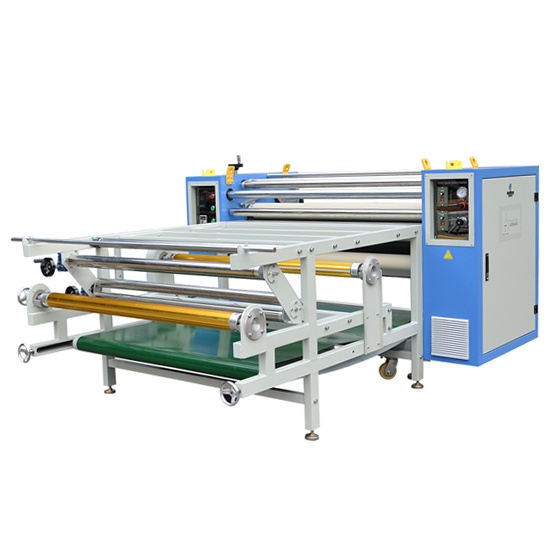

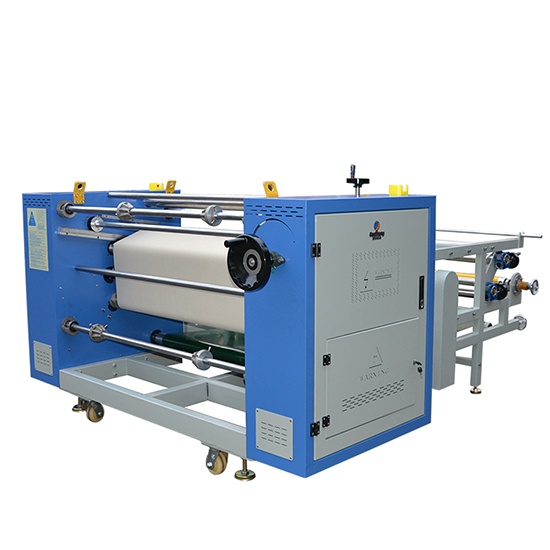

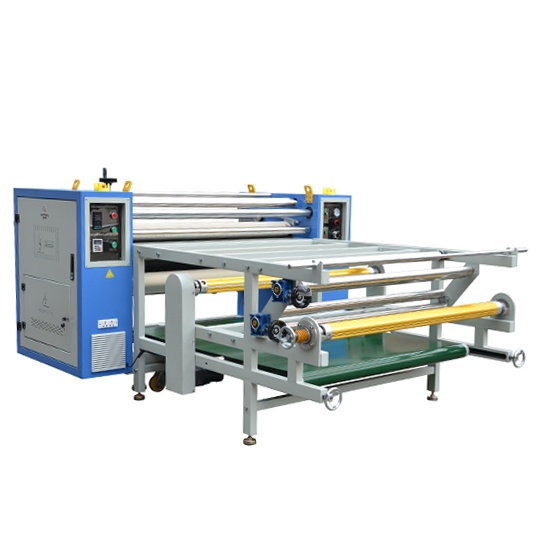

This GS-R120 Oil Heating Calendar Machine is specifically designed to meet the increasing demands for pieces digital printing, it can do both pieces and rolls. The transfer paper is placed side up on the table and feeds continuously into the machine, the waste paper and the transferred fabric exit under the working table. This model is economical and practical after our perfect development during these years. It is designed for production and sampling, especially has advantage in pre-cut pieces transfer, and it is simple to operate. The design also allows for the use of protection paper to protect the blanket from contamination. Customers can add more functions to the machine and optimize it according to their own requirements and our digital printing solutions.

Features:

1.       Transfer both pieces and rolls, easy accessibility of material.

2.       The pre-cut pieces are easily placed because of the working table.

3.       Easy to operate, simple setting of speed, temperature and pressure.

4.       The transferred are easily collected from the machine because of the conveyor belt.

5.       With great consistency and with fewer operators.

6.       Cooling-down timer included.

Machine Parameters:

Model	GS-R120
Power	6KW
Voltage	220V/380V
Time Range	0-999S
Temp. Range	0-399°C
Working Table	1.2M
Packing Size	200*83*145CM
